It’s in those situations where an air admittance valve can save the day. Air Admittance Valves (AAV) are one-way vents installed after the trap on the drain line of a fixture. They’re designed to address negative air pressure in the drain system, created when a fixture is drained.
Thereof, How do I install an AAV vent?
Also to know is, Where do you put a studor vent? Air Admittance Valves (aka Studor vents) are “negative-pressure-activated” one-way mechanical valves. Used most commonly at an island sink or vanity the vents are also located in the attic to prevent the roof penetrations (as seen above) on the front roof line elevation.

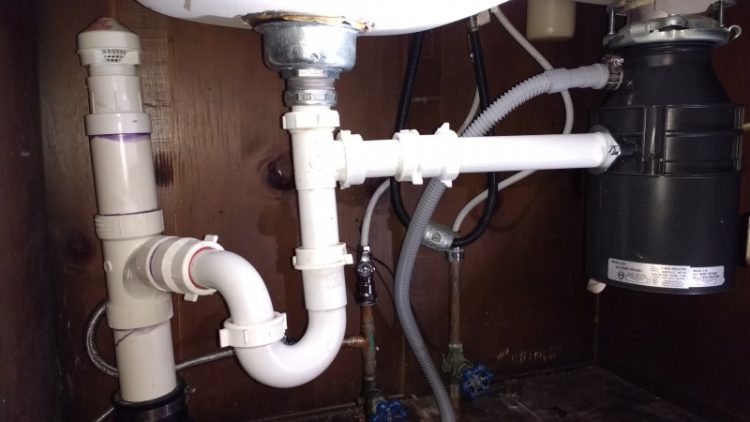

Subsequently, question is, Where is AAV valve installed? Air admittance valves are typically placed between the P-trap of a fixture and the drain line. They are usually mounted on one leg of a sanitary tee, with the other leg going to the drain. The unit must be placed in accordance with local codes and the manufacturer’s instructions.
Also, Can a studor vent be installed outside?
Studor® Air Admittance Valves may be used outside. It is recommended that protection for all Air Admittance Valves be used.
Can you put an air admittance valve in a wall?
Each AAV has to be accessible and have unimpeded airflow, so it can’t be sealed inside a wall. But if air and access is available — via a removable louvered panel or screen covering, say — it can be mounted there.
What is the purpose of air admittance valve?
The air admittance valve (AAV) is a device designed to allow air to enter the drainage system to balance the pressure and prevent siphonage of the water trap when negative pressure develops in the system.
Can you box in an air admittance valve?
Don’t know your particular pipe layout but, in reality, as long as you don’t box the valve into a totally confined, sealed space it won’t affect the intermittent operation of the AAAV. Just ensure air can get in from somewhere, under the floorboards or from the stack riser itself if that’s also boxed in.
What is the best air admittance valve?
– #1 TUUBER Dual Seal Air Admittance Valve.
– #2 Oatey Sure-Vent Air Admittance Valve.
– #3 Studor Redi-Vent Air Admittance Valve.
Can an air admittance valve be installed horizontally?
1- air addmittance cant be installed horizontally and should be higher than the the highest point in your bathroom which is basin.
Where does a studor vent go?
Air Admittance Valves (aka Studor vents) are “negative-pressure-activated” one-way mechanical valves. Used most commonly at an island sink or vanity the vents are also located in the attic to prevent the roof penetrations (as seen above) on the front roof line elevation.
What happens when an air admittance valve fails?
Air Admittance Valves (AAV) are one-way vents installed after the trap on the drain line of a fixture. … Failure to bring air back into the pipes can result in a vacuum (causing slow draining and gurgling), or even the siphoning of water out of traps (allowing sewer gases to enter the home through drain openings).
Where do you install an air admittance valve?
Can a studor vent be installed horizontally?
More than one Studor vent can be installed within a horizontal branch to vent various fixtures. The Sure-Vent® AAV must be located a minimum of 4 inches above the horizontal branch drain and 6 inches above any insulation material and within 15 degrees of vertical. …
Can you put a studor vent in the wall?
STUDOR AAVs must be located a minimum of four (4”) inches above the horizontal branch drain or fixture drain being vented. STUDOR AAVs shall be accessible should replacement be required. For in-wall installation, use STUDOR recess box/grill combination. … STUDOR AAVs must be installed in the vertical, upright position.
What happens when plumbing is not vented?
Poorly-vented drain lines will not be able to effectively move wastewater and solid waste out of your building. This could lead to problems such as overflowing drains, backed-up toilets, and similar plumbing issues.
What is an air admittance valve used for?
The air admittance valve (AAV) is a device designed to allow air to enter the drainage system to balance the pressure and prevent siphonage of the water trap when negative pressure develops in the system.
