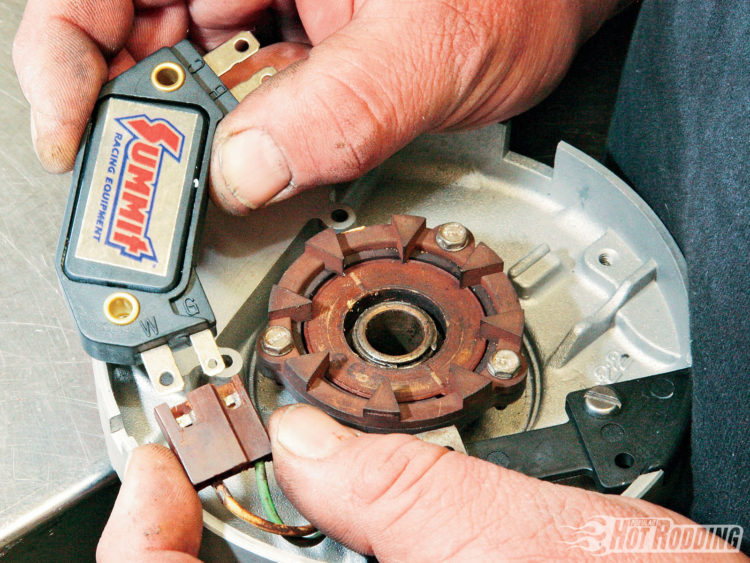

Where is the ignition module located? The location of the ignition module depends on where the vehicle was manufactured. In a domestic model, the module sits on, inside, or near the distributor housing. Foreign models will hide their ignitor within the vehicle’s firewall or wheel-well.
The ignition module is responsible for firing the spark plugs. Each spark plug must fire at exactly the right time for the engine to run properly. The ignition module uses input from the crankshaft position sensor or camshaft position sensor to determine when to fire the spark plugs.
Thereof, How much is a ignition module?
Ignition Control Module Replacement Cost – RepairPal Estimate. The average cost for ignition control module replacement is between $286 and $381. Labor costs are estimated between $67 and $84 while parts are priced between $219 and $297.
Also to know is, What causes ignition module failure? The cause of an ignition control module failure is often associated with age and damage from heat buildup. The correction for this issue becomes the replacement of the failed component.
Subsequently, question is, What would cause an ignition control module to fail? The cause of an ignition control module failure is often associated with age and damage from heat buildup. The correction for this issue becomes the replacement of the failed component.
Also, What are the symptoms of a bad ignition module?
One of the first symptoms of a problem with the ignition module are engine performance issues. If the ignition module fails or has any problems it can lead to performance issues with the vehicle, such as misfires, hesitation, loss of power, and even reduced fuel economy.
How do you replace an ignition module?
Reach under the engine and unplug the coil assembly electrical connectors. Remove the assembly mounting bolts using a ratchet and socket. Remove the assembly from the engine and remove the coils using a ratchet and socket. Remove the old ignition module from the base plate and install the new unit.
What are the symptoms of a bad ignition control module?
– Engine performance issues. One of the first symptoms of a problem with the ignition module are engine performance issues. …
– Engine stalling. Another symptom of a problematic ESC module is the engine stalling. …
– Car not starting or engine not sparking.
How do you test an ignition module?
Connect the ground lead from the 12-volt test light to the negative terminal on the ignition coil. Have your partner crank the engine over several times. Your test light should flicker on and off. If so, your module is working properly and no further testing is necessary.
How do you test an electronic ignition?
Check for voltage at the coil positive terminal when the ignition key is on. Place the red lead of the multimeter on the positive coil terminal. Place the black lead to the battery negative terminal. Turn on the ignition switch to the “Run” position.
What happens when a distributor condenser goes bad?
A failing points and condenser system can cause rough running, misfires, lean and rich conditions. … If your vehicle runs rough, the engine will not fire, or the vehicle will not start at all, it may the points and condenser system that is the issue.
How do you test an ignition control module GM?
– Open the hood of the GM vehicle. Locate the ignition module. …
– Connect the positive test light lead to the ignition module signal wire. You will notice a wire harness on the side of the module; the signal wire is the middle wire of the three. …
– Ask a partner to crank the engine numerous times.
How do I test an Onan ignition module?
Leave the jumper from the + battery terminal to the + coil terminal connected and rotate flywheel slowly by hand while observing voltmeter. Voltage should switch between battery voltage and 1-1.5 volts for each revolution. If voltage does not switch properly, replace ignition module.
How do I know if my ignition module is bad?
– Engine performance issues. One of the first symptoms of a problem with the ignition module are engine performance issues. …
– Engine stalling. Another symptom of a problematic ESC module is the engine stalling. …
– Car not starting or engine not sparking.
How do you test an electronic ignition distributor?
Rotate the distributor center shaft by hand or by cranking the engine. Observe the distributor rotor as the engine is being cranked over. If the distributor rotor fails to turn, then the distributor or distributor gears are bad. The multimeter should read voltage alternating between battery voltage and zero.
How much does it cost to replace ignition module?
The Best in Auto Repair The average cost for ignition control module replacement is between $286 and $381. Labor costs are estimated between $67 and $84 while parts are priced between $219 and $297. This range does not include taxes and fees, and does not factor in your unique location.
How do you replace an ignition control module?
How do you diagnose a bad ignition control module?
– Engine performance issues. One of the first symptoms of a problem with the ignition module are engine performance issues. …
– Engine stalling. Another symptom of a problematic ESC module is the engine stalling. …
– Car not starting or engine not sparking.
