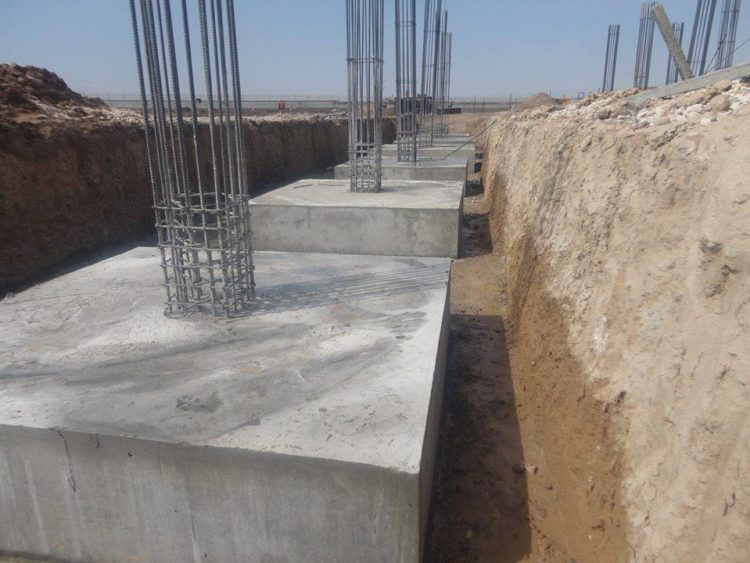

Isolated footings are provided where the soil bearing capacity is generally high and it comprises of a thick slab which may be flat or stepped or sloped. This type of footings are most economical when compared with the other kind of footings. Economical when columns are placed at longer distances.
Table of Contents
READ ALSO
Column Footing is also famous as independent footing. An independent footing is one which is provided under a column or either similar member for distributing concentrated load in the form of uniformly loads on the soil below. … column footings may be circular, rectangular or square in plan.
Thereof, How deep should a footer be for a support post?
Footers must be a minimum of 24 inches deep.
Also to know is, How do you calculate footing size?
Subsequently, question is, How do you determine your footing size? You can look up the recommended footing size, based on the size and type of house and the bearing capacity of the soil (see the table above). As you can see, heavy houses on weak soil need footings 2 feet wide or more. But the lightest buildings on the strongest soil require footings as narrow as 7 or 8 inches.
Also, How would you determine the minimum depth of foundation?
As per Rankine’s theory Minimum depth of foundation =p/w (1-sin Φ /1+sin Φ) 2 where p=gross bearing capacity w =density of soil Φ =angle of response of soil 3. But in practice, the foundation depth is kept at 0.90m or even more.
What is the minimum depth of footing?
12 inches
How deep should concrete piers be?
The minimum thickness for a pier is 8 inches. The minimum thickness for pier footings is 8 inches or 1-1/2 times the length of the footing projection from the pier, whichever is greater.
How deep should footings be?
Depth: Footings should extend to a minimum depth of 12 inches below previously undisturbed soil. Footings also must extend at least 12 inches below the frost line (the depth to which the ground freezes in winter) or must be frost-protected. Width: Footings should have a minimum width of 12 inches.
What is the standard footing size?
Depth: Footings should extend to a minimum depth of 12 inches below previously undisturbed soil. Footings also must extend at least 12 inches below the frost line (the depth to which the ground freezes in winter) or must be frost-protected. Width: Footings should have a minimum width of 12 inches.
How deep and wide do footings need to be?
12 inches
What type of footing is used for foundation?
Individual footing or an isolated footing is the most common type of foundation used for building construction. This foundation is constructed for a single column and also called a pad foundation. The shape of individual footing is square or rectangle and is used when loads from the structure is carried by the columns.
What is the minimum depth of foundation?
Depth: Footings should extend to a minimum depth of 12 inches below previously undisturbed soil. Footings also must extend at least 12 inches below the frost line (the depth to which the ground freezes in winter) or must be frost-protected. Width: Footings should have a minimum width of 12 inches.
Do concrete piers need rebar?
We usually recommend that a minimum of two pieces of #4 rebar be placed vertically in an 8-inch-diameter concrete pier supporting a structure. … The rebar provides the tensile strength needed to resist lateral stresses that can be applied to a concrete pier by ground movement, freeze cycles, and wind loads.
How wide should foundations be?
Undisturbed soil is significantly stronger than soil that has been disturbed. … Footings also must extend at least 12 inches below the frost line (the depth to which the ground freezes in winter) or must be frost-protected. Width: Footings should have a minimum width of 12 inches.
What is minimum footing size?
12 inches
What is the minimum thickness of footing?
6 inches
How thick do footings need to be?
Eight inches
