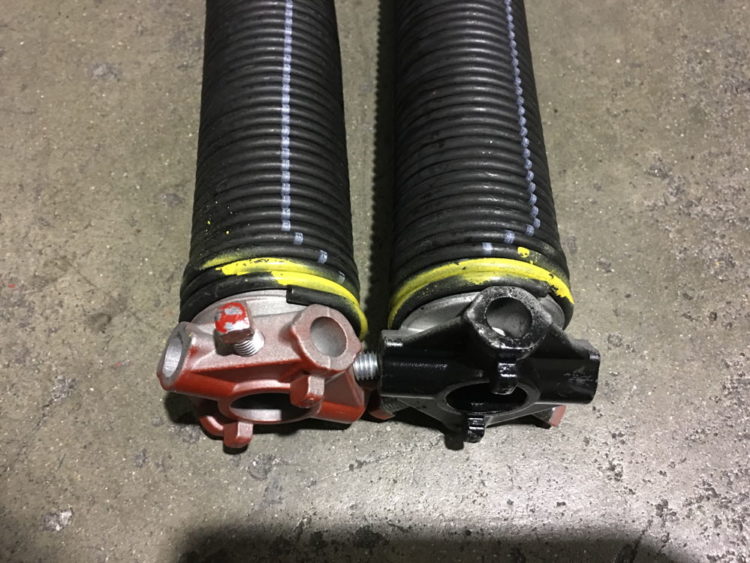

Torsion springs tend to be stronger and more durable than extension springs. And though they are more expensive, they last longer, between 15,000 and 20,000 cycles as opposed to 10,000 cycles with extension springs. They also offer greater balance and show more control when moving, not jerking as the door moves.
Long Life Torsion Springs By using larger springs, you can, in most cases, quadruple your spring life while only doubling the cost of the springs. You will also avoid extra work down the road. The industry standard is 10-15,000 cycles for new doors.
Thereof, How do I choose a garage door torsion spring?
– Determine the wind direction. Check out the garage door springs from inside your garage. …
– Measure the wire size. …
– Measure the Overall length and (IOD) inside diameter of the spring. …
– Identify the color-code of the spring.
Also to know is, How long do torsion springs last? 7 to 12 years
Subsequently, question is, How long does it take to replace torsion springs? Typical spring change should be within an hour. Explanation: Replacing garage door torsion springs are under very extreme tension. Only certified technicians should perform this job dutie. 1 hr to change 2 springs.
Also, What is a garage door extension spring?
Garage door extension springs counterbalance the weight of garage doors to make them easy to open and close. … Extension springs are stretched with cables and pulleys. One end of the cable attaches to the bottom of the door; the other end of the cable is usually secured to the horizontal track angle with an s-hook.
What size of torsion spring do I need?
Length of 10 coils (in Inches) Length of 20 Coils (in Inches) Wire Size
—————————— —————————— ———
1 15/16 3 7/8 .192
How much does it cost to replace a torsion spring?
Torsion spring replacement costs anywhere from $75 to $150 per spring, including both materials and labor. The springs alone run $30 to $100 each. You’ll almost always have two springs per door, and you should replace both at the same time. They’re located above the door.
What is the color code on garage door springs?
Color Pounds Kilograms
—— ———- ———
Green 20/120/220 10/55/100
Yellow 30/130/230 15/60/105
Blue 40/140/240 20/65/110
Red 50/150/250 25/70/115
How do I know how heavy my garage door is?
How do I know what garage door spring I need?
Do I need to replace both torsion springs?
When replacing tension springs, it is recommended that both springs be replaced and matched because the older, unbroken spring will have lost some of its tension from years of use. … Torsion springs have so much stored energy that they can cause serious injury or even death if mishandled.
Can garage door springs kill you?
People have been maimed and some even killed from trying to fix their garage door springs. Torsion springs are the most dangerous, but even the extension springs can be dangerous – when they are extended they are stretched to potentially deadly force. Remember these springs lift a 400-pound door.
How many times do you turn a torsion spring?
A rule of thumb with springs is that four quarter turns equals a full revolution and the spring needs to be tightened a full revolution for every foot of door height (e.g. 7-1/2 foot door = 7 revolutions +2 (30 quarter turns).
How much does it cost to replace a garage door torsion spring?
Garage Door Spring Replacement Cost. Replacing garage door springs costs $100 to $300 on average. The springs alone typically run $30 to $75 each but you may find them as low as $15 a piece and up to $100 each. Commercial grade springs can run $300 or more.
How do I know what torsion spring I need for my garage door?
Basically, you run a tape measure along the length of a spring, and take down the number of inches. Therefore, if your tape measure indicates that a torsion spring is 36 inches from one end to the other, that’s a 36-inch — or three foot — torsion spring.
How much does a 7×9 garage door weigh?
Garage Door Size Steel Gauge Garage Door Weight
—————- —————– ——————
16×7 steel back 2 inch 219.39 lbs
Garage Door Size Steel Gauge Garage Door Weight
What does a torsion spring do on a garage door?
Torsion springs are normally mounted horizontally above the opening of your garage door. When you pull the door down, cables attached to the bottom corners actually force the springs to wind up, in turn energizing the system.
