The hole cannot be larger than one-third the depth of the joist, so the maximum hole size for a 2×12 joist (actual size 1-1/2 x 11-1/4 in.) is 3-3/4 in. diameter—plenty big enough for running cable! You can drill the holes anywhere along the length of the joist (first photo). One may also ask, can I cut a joist?Jan 16, 2020
Holes up to 4 in. can be drilled in the middle of the I-joist, away from the ends and load-bearing wall. Keep the distance between adjacent holes at least twice the diameter of the largest hole.
Thereof, How do you reinforce joists with holes?
Also to know is, Can you drill holes in tji? Often, hole size can be increased and holes can be placed closer to bearing than shown on the chart based on actual design spans and loads. … Use Forte®WEB single member sizing software to check hole sizes and locations or contact Weyerhaeuser Technical Support for more help.
Subsequently, question is, Can you drill holes in trusses? The cutting, notching or drilling of trussed rafters is not generally permitted unless the Trussed Rafter Designer has allowed this for in the design.

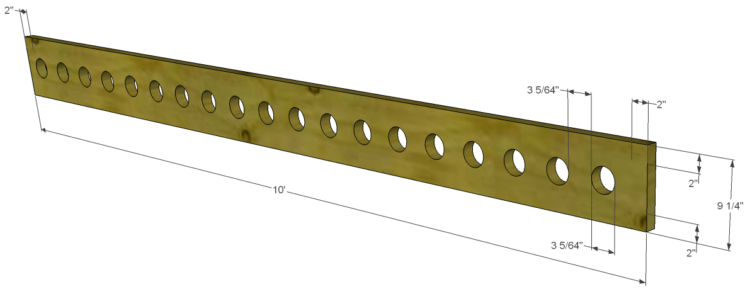

Also, Can I drill a 3 hole in a 2×10 floor joist?
Simply following building code, you’ll only be allowed to bore a 3-5/64″ hole through a 2×10 joist. A 2×10 is actually only 9-1/4″ deep, and building codes set the maximum hole size to 1/3 the depth of the member (9-1/4″ / 3 = 3.08333″).
How do you reinforce floor joists that are cut?
How far can a 2×10 floor joist span without support?
In general terms, joists spaced 16 inches on center can span 1.5 times in feet their depth in inches. A 2×8 up to 12 feet; 2×10 to 15 feet and 2×12 to 18 feet. The larger the deck, the larger the joists.
Can a 2×10 span 20 feet?
Douglas fir 2-by-10 joists graded as “Structural Select” allows joist spans up to 21 feet for a live load of 30 pounds per square foot when spaced 12 inches apart, 19 feet 1 inch for 16 inch spacing and 16 feet 8 inches for 24 inch spacing.
How do you reinforce a joist?
As incremental parts of a building’s structure, joists are not easily replaced. You can, however, strengthen the joists by securing another length of wood to the existing joist, called “sistering,” or reduce wobbly floors with block inserts between the joists, called “blocking.”
Can you drill through roof joists?
The hole cannot be larger than one-third the depth of the joist, so the maximum hole size for a 2×12 joist (actual size 1-1/2 x 11-1/4 in.) is 3-3/4 in. … You can drill the holes anywhere along the length of the joist (first photo). If you have manufactured I-joists, you can drill holes up to 1-1/2 in.
Can I drill holes in roof trusses?
Cutting, notching and drilling is NOT permitted. The following actions are NOT permitted: Notching anywhere within the trussed rafter. … ‘Room in the Roof’ trussed rafters should never be cut to accommodate dormers or stairwells without obtaining detailed instructions from the Trussed Rafter designer.
Can you cut into a truss?
Building codes prohibit any field modification (notching or cutting) of roof trusses. That’s because once you cut into any part of a roof truss, you can’t trust its integrity. So you really should check with your local building inspector before proceeding.
Can you put waste pipe through joists?
Running Drain Lines through Joists In most cases, you can’t install a solid run of pipe, which means you must install short pipe segments and connect them in every joist space. Open-member floor trusses make running drainpipes simpler, but you cannot cut or notch any part of a truss.
Can you drill holes in I joists?
You can drill the holes anywhere along the length of the joist (first photo). If you have manufactured I-joists, you can drill holes up to 1-1/2 in. diameter almost anywhere in the web area (the area between the flanges).
Can you drill through rafters for wiring?
It should be noted that notches or holes should not be cut in roof rafters, other than at supports where the rafter may be birdsmouth3 to a depth not exceeding 0.33 times the rafter depth.
What size lumber can span 20 feet?
What will a 2×10 span?
10 feet
