No, you can not run your Romex wiring in conduits. What you’re looking at in the code book is referring to THHN and other wiring, that while insulated with a single coat is not insulated with a second covering and bound to 2 or 3 other wires.
Table of Contents
READ ALSO
– Tie a string to a long, thin nonflexible rod.
– Push the rod and string through the conduit until the string emerges from the opposite end.
– Tie electrical wires onto the string.
– Pull the rod back through the conduit, bringing along the wires. This method works best for shorter pieces of conduit.
Thereof, What wire can be run in conduit?
The most common type of cable used in home wiring is non-metallic (NM), or Romex, cable. While NM cable can be run inside conduit, this is seldom done. The types of wire most commonly installed inside of conduit are THHN and THWN.
Also to know is, What is electrical conduit called? An electrical conduit is a tube used to protect and route electrical wiring in a building or structure. Electrical conduit may be made of metal, plastic, fiber, or fired clay. Most conduit is rigid, but flexible conduit is used for some purposes.
Subsequently, question is, Is Romex allowed in conduit? Romex is allowed in conduit, length is not an issue. Romex is not allowed in wet locations. The inside of conduit in a wet location is considered a wet location.
Also, Do electrical wires need to be in conduit?

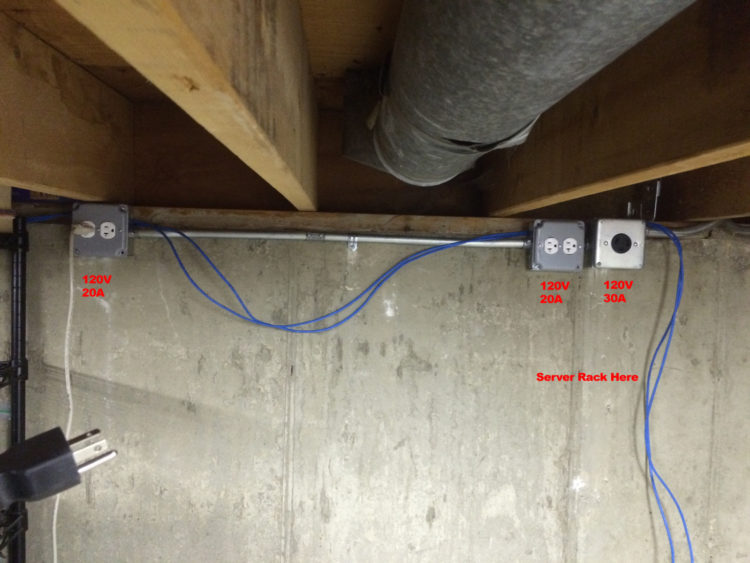

In a household wiring system, most of the circuit wiring is in the form of insulated cable that is run inside wall, floor and ceiling structures without conduit. Conduit typically is used only where circuit wires are exposed (or surface-mounted or buried) and therefore need protection from damage or moisture.
Where is a flexible conduit needed?
Flexible metallic conduits or FMCs are often used in commercial buildings. This conduit is specifically used in areas where it is not possible to use a rigid conduit. It can provide ample strength and protection with the added benefit of flexibility.
What is electrical conduit fittings?
Electrical conduits are metal, plastic or fiber pipes designed to protect electrical cables and wires. Since they are essentially a safety feature, you should select the material, size and fittings based on the environment of the installation and the type of wiring it’ll be housing. …
Is flexible conduit code?
So all flexible conduit used from the last outlet box to a lighting fixture must be 6 ft or less. This applies to all trade sizes used as lighting fixture tap conductors. … 250-18 limits flexible metal conduit to 6 ft only for grounding. In lengths over 6 ft, you must install a separate grounding conductor.
How do you connect electrical conduit?
– Step 1: Anchor Boxes. Anchor metal boxes to the wall with screws. …
– Step 2: Measure Conduit. Once the boxes are installed, measure the conduit for cutting. …
– Step 3: Cut Conduit. Cut the conduit to fit with a hacksaw. …
– Step 4: Slide in Conduit. …
– Step 5: Anchor Conduit.
What is flexible conduit called?
Flexible metal conduit (FMC) is also called “Greenfield,” after the name of its inventor. It has a spiral construction that makes it flexible so it can snake through walls and other structures.
Can flexible conduit be exposed?
A. According to 348.10 of the 2011 NEC, flexible metal conduit (FMC) is permitted in exposed or concealed locations.
How do you connect flexible electrical conduit?
– Step 1 – Check Your Conduit Size. Flexible electrical conduits come in many sizes and varieties. …
– Step 2 – Check the Knockout Hole Size. …
– Step 3 – Attach Connector into Conduit. …
– Step 4 – Snap Connector into Knockout Hole.
Is it OK to run Romex in conduit?
one reason you don’t put romex in conduit is because it creates more heat and is not advised in conduit if you have conduit you can run insulated wires instead it’s probably cheaper. when you put romex inside conduit The Romex cannot breathe and retains too much heat. … but of course they are insulated wires.
What is flexible conduit?
Conduits are tubings used to enclose and protect electrical wires that supply power to a home or a building. … Flexible metallic conduits or FMCs are often used in commercial buildings. This conduit is specifically used in areas where it is not possible to use a rigid conduit.
What type of wire can be run in conduit?
The most common type of cable used in home wiring is non-metallic (NM), or Romex, cable. While NM cable can be run inside conduit, this is seldom done. The types of wire most commonly installed inside of conduit are THHN and THWN. THHN/THWN wires are individual, insulated, and color-coded wires.
Is conduit required in residential?
Sheathed cable is convenient and easy to run. Conduit, however, is required for all residential and commercial wiring in certain areas of the country, making home wiring more expensive and more difficult for the average homeowner.
Can flexible conduit be used outdoors?
Outdoor flexible nonmetallic tubing is strong, watertight, non-corrosive and weighs less. Metal or plastic boxes can be used with nonmetallic conduit. Always run a ground wire when using PVC conduit.
