Thereof, What breakers are compatible with Square D Homeline?
– The Homeline breakers are made to fit in most “interchangeable” panels, such as GE, Bryant, Murray, ITE, etc. …
– Also, are Eaton and Square D breakers interchangeable? …
– Yes, Siemens makes what is called a “QD” Series breaker that is UL listed and “classified” to be used in a very specific list of Sq.
Also to know is, What breakers are compatible with Homeline panels? Senior Member. The Homeline breakers are made to fit in most “interchangeable” panels, such as GE, Bryant, Murray, ITE, etc. However, Square D added a small protrusion on their bus bars to reject those other breakers from being installed in the Homeline panels.
Subsequently, question is, Can I use QO breakers in a homeline panel? Issue: Is it possible to use a Homeline breaker on a QO Load Center? Resolution: No, the panels are of different designs.
Also, Are QO and QOB breakers interchangeable?
A QO breaker is plug on mounting, and can be used in QO load centers, old NQO and NQOD panelboards, and current NQ panelboards. A QOB breaker uses a bolt-on connection to the bus, and can be used in old NQOB and NQOD panelboards, and current NQ panelboards. Otherwise the breakers are the same.

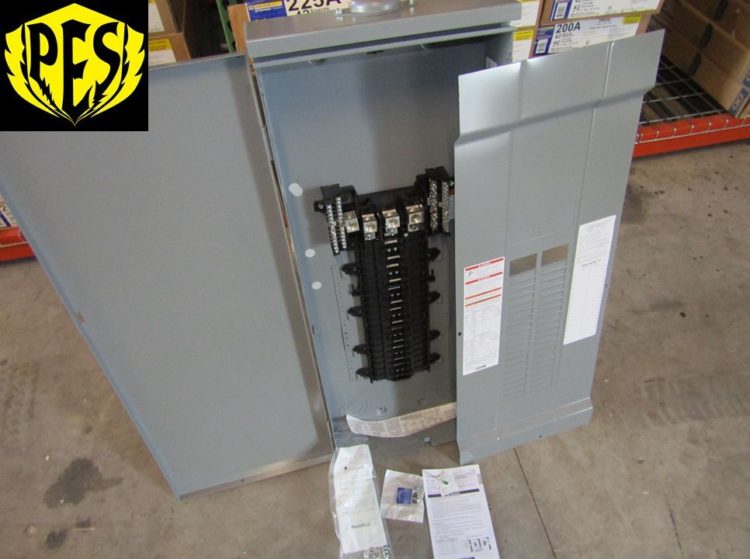

How do you wire a single breaker box?
– Feed the cable into the breaker panel.
– Connect the ground wire.
– Connect the neutral wire.
– Connect the hot wire to the breaker and snap it in place.
What is the difference between Homeline and QO panels?
What is the difference between Square D Homeline and QO breakers? While the Homeline is a fine breaker, the QO has the fastest trip mechanism of any breaker. … These breakers feature a visual trip indicator and make it easy to quickly spot the tripped breaker in the panel.
How do you wire a breaker box to another breaker box?
Is it OK to use stranded wire in a breaker box?
Stranded wire can be bent to a smaller radius. Solid wire also becomes very difficult to handle in larger gauges. Of course, the huge wires that bring power to your breaker box are stranded. They would be too difficult to shape and simply could not bend in a small enough radius if they were solid.
Which is better QO or Homeline?
no reason not to go with the Homeline breakers, they are fine for residential use. There’s a reason for that price difference – the QO is a better quality panel. The HO is an adequate panel, but I chose the QO. The HO panel has aluminum buss bars, the QO has tinned copper bars.
What breakers fit in a homeline panel?
The Homeline breakers are made to fit in most “interchangeable” panels, such as GE, Bryant, Murray, ITE, etc. However, Square D added a small protrusion on their bus bars to reject those other breakers from being installed in the Homeline panels. Also, are Eaton and Square D breakers interchangeable? Both breakers fit.
What breakers fit in an Eaton panel?
While you now know that Eaton breakers, Westinghouse breakers, Square D breakers, and Cutler-Hammer breakers are largely compatible, you still need to find the exact models you need for your facility.
Are all Square D QO breakers the same?
Square D also offers the HomeLine series which is NOT interchangeable with the QO series. QO® (plug-on) one-, two- and three-pole thermal-magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems.
Is it OK to cover electrical panel?
Can you cover a circuit breaker box? You are allowed to cover it with a door to match your decor but it must be easy to open and must not interfere with the opening of the steel door of the panel and you must have full access to all of the breakers. You are not allowed to have any kind of lock.
Which wire can carry a higher current stranded or solid wire?
Because of the given thickness of stranded wire, i.e., it’s thinner, there are more air gaps and a greater surface area in the individual strands of wire. Therefore, it carries less current than similar solid wires can.
How do you wire a sub breaker box?
A subpanel requires two hot wires connected to a 240-volt double-pole breaker in the main panel. It also needs a neutral wire and a ground wire. The cable used for this run is known as a “three-wire cable with ground.” The two hot wires, called feeder wires, will provide all of the power to the subpanel.
Are Square D QO and Homeline breakers interchangeable?
2) QO and Homeline are NOT interchangeable, so the QO branch breakers CANNOT be used in Homeline and the Homeline branch breakers CANNOT be used in QO.
