Thereof, Does a toilet flange sit flush with the floor?
The toilet flange needs to be on top of the finished floor. Meaning the bottom edge of the flange needs to be on the same plane as the toilet. So if your toilet sits on the tile, the flange needs to be on top of the tile too. The spacing of the toilet exit “horn” and sealing surface is designed for this height.
Also to know is, Can toilet flange be flush with floor? The toilet flange needs to be on top of the finished floor. Meaning the bottom edge of the flange needs to be on the same plane as the toilet. So if your toilet sits on the tile, the flange needs to be on top of the tile too. The spacing of the toilet exit “horn” and sealing surface is designed for this height.
Subsequently, question is, What happens if toilet flange is too high? When your toilet flange is too high, your toilet may leak water and rock back and forth when used. Both the leaking and the rocking can warp or break the floor. A leaking flange can also rot the subfloor and lead to the accumulation of mildew and mold.
Also, How high should toilet flange sit above floor?

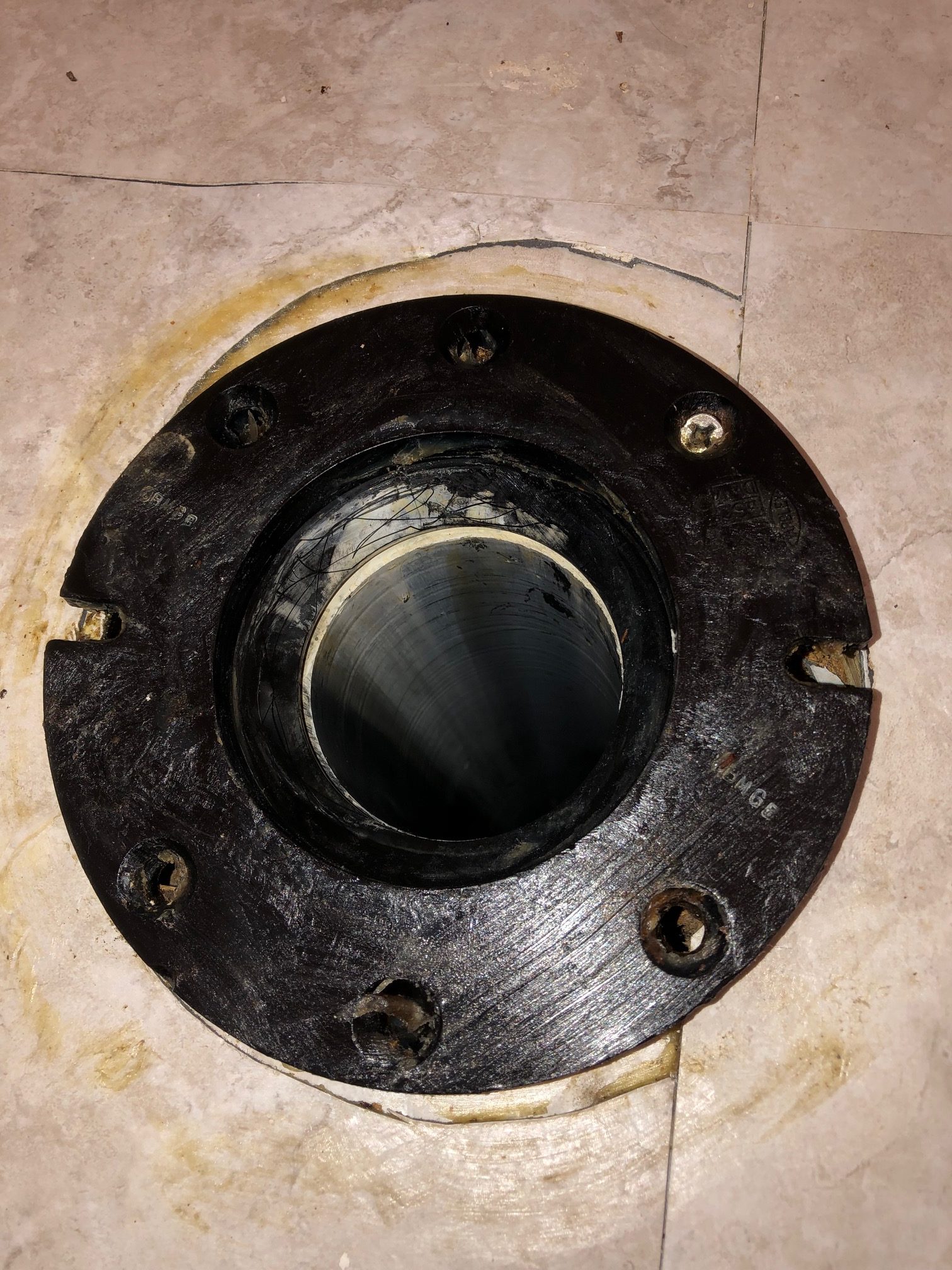

With the toilet removed, you can see the toilet flange and measure its height above the floor. Optimum flange height to aim for is 1/4 inch above the finished floor. This typically allows for almost any type of wax ring to be used and still ensure a good seal.
Can I use a 3 inch toilet flange?
Many flanges are simply 3 inches in diameter, which means the top and bottom are each 3 inches wide. These flanges must install on a 3-inch-diameter schedule 40 drain pipe or directly to a 3-inch closet bend. When installing this type of flange, make sure your piping is sized properly.
Can I use 3 inch pipe for toilet?
In new construction, 4-inch drains can be installed from every toilet, or you can run a 3-inch drain line from a toilet to the home’s main 4-inch drain pipe — the line running from the house to the sewer or septic system. Older homes may have only 3-inch drains, so that’s what you have to work with.
How do you install a 3 inch toilet flange?
Does toilet flange go inside pipe?
Always inside. But it is unusual to find an iron flange in a PVC pipe, how was it fastened. There should be a hub on the PVC, if not, use a Fernco sleeve to secure things.
Can a toilet flange sit above the floor?
Optimum flange height to aim for is 1/4 inch above the finished floor. This typically allows for almost any type of wax ring to be used and still ensure a good seal. If you recently tiled or changed the bathroom flooring, the flange height is likely less than optimal.
Can toilet flange be lower than floor?
In a typical toilet installation, the floor flange that sits inside the drain opening below the toilet should be positioned so that its bottom surface rests flush against the finished floor, or no more than 1/4 inch above or below the floor.
How is toilet flange attached to pipe?
How many toilets can you put on a 3 inch line?
2 Answers. Referring to the International Plumbing Code, a bathroom group requires 5 Drainage Fixture Units. As a horizontal branch 3″ is good for 20 DFU’s or 4 bathroom groups.
Does toilet flange sit on top of finished floor?
The toilet flange needs to be on top of the finished floor. Meaning the bottom edge of the flange needs to be on the same plane as the toilet. So if your toilet sits on the tile, the flange needs to be on top of the tile too. The spacing of the toilet exit “horn” and sealing surface is designed for this height.
Does toilet flange go inside or outside pipe?
Always inside. But it is unusual to find an iron flange in a PVC pipe, how was it fastened. There should be a hub on the PVC, if not, use a Fernco sleeve to secure things.
How do you raise the toilet flange after tiling the floor?
Purchase a toilet flange extension ring thick enough to raise the toilet mounting surface so that it’s approximately 1/4-inch above the level of the finished tile floor. Clean the top of the existing toilet flange thoroughly with a rag. Apply a thin bead of silicon caulk around the top edge of the flange.
Can you use a 2 inch pipe for a toilet?
Systems with less than nine units on one stack can use a 2-inch pipe, unless there is a toilet discharging into the piping. If that’s the case, it must be a minimum of 3 inches. The stack discharges into the main drain pipe.
