10 receptacles
20 amps
Thereof, Is it OK to use a 20 amp outlet on a 15 amp circuit?
Electrical plugs designated as 20-amp will not fit into 15-amp outlets. A 15-amp circuit is usually served by 14-gauge wire and is protected by a 15-amp circuit breaker or fuse. A 20-amp circuit, protected by a 20-amp breaker or fuse, must be served by 12-gauge or 10-gauge wire.

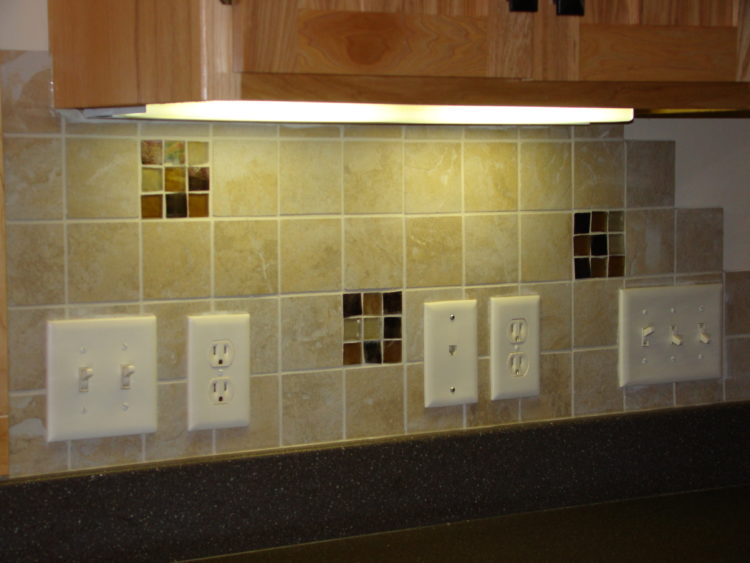

Also to know is, Are 20 amp outlets required in kitchen? Kitchens, by code, are required to have at least two 20 amp, 120-volt circuits to be installed on every kitchen countertop. The main reason for this is so the outlet can handle enough amps to power simple kitchen cookware such as microwave ovens, toasters, and blenders.
Subsequently, question is, How do I know if I need a 15 amp or 20 amp GFCI? The amp rating of the receptacle and circuit do not depend on whether the receptacle is a GFCI or not: If you have a 15 amp circuit, you must have 15 amp receptacles. If you have a 20 amp circuit, you can either have 20 amp receptacles, or 15 amp receptacles if there is more than one (e.g. a duplex receptacle).
Also, How do I know if I have a 15 or 20 amp circuit?
Tip: The easiest way to determine whether a circuit is 15 or 20 amps is to look at the corresponding breaker or fuse in the breaker panel. Dedicated circuits are electrical lines that carry an electrical current to one single outlet.
How many 15 amp receptacles can be on a 20 amp circuit?
Table 210.21(B)(3) also shows that a 15 amp receptacle can be installed on a 20 amp circuit that serves 2 or more receptacles.
Can I use a 20 amp GFCI on a 15 amp circuit?
According to National Electrical Code, only a 15-amp or 20-amp electrical receptacle can be installed to a 20-amp circuit. A 15-amp receptacle may also be installed on a 15-amp circuit. However, a 20-amp GFCI outlet may not be installed to a 15-amp circuit.
What appliances require a 20 amp circuit?
Small Appliance Circuits Atop your counter-top you will need two dedicated 20-amp, 120/125-volt circuits to run your small appliance loads, including devices such toasters, electric griddles, coffee pots, blenders, etc. Two circuits are the minimum required by Code; you can also install more if your needs require them.
What uses a 20 amp outlet?
Appliances, such as microwaves, often have 20-amp plugs and must be plugged into a 20-amp outlet. Electrical plugs designated as 20-amp will not fit into 15-amp outlets. … A 20-amp circuit, protected by a 20-amp breaker or fuse, must be served by 12-gauge or 10-gauge wire.
How do I know what AMP my outlet is?
Look at your outlet. If the two slots are parallel, it is a 15 amp outlet. If one slot is ‘T’ shaped and the other is straight, it is a 20 amp outlet that will also accept 15 amp plugs. If the two slots are perpendicular the outlet is 20 amp only.
How many receptacles can be on a 15 amp circuit?
10
Do I need 15a or 20a outlets?
Since a majority of 125vac consumer products, commercial equipment and light industrial machinery require less than 15A, 15A plugs are provided on their power cords as well. The NEC requires that a 20A receptacle is installed on a 20A branch circuit when there is only one receptacle connected to that circuit.
Can you put 15a outlets on a 20a circuit?
To directly answer your question, having two(or more) 15A outlets on a single 20A circuit with 12awg wire(the appropriate size for 20A circuit) is generally safe, and pretty common. A single outlet will not allow more than a 15A device to be plugged in, ensuring the outlet itself is not overloaded.
How many appliances can be on a 20 amp circuit?
One rule of thumb is to assign a maximum draw of 1.5 amps to each receptacle, which allows for 10 receptacles on a 20-amp circuit.
Do I need 20 amp outlets in kitchen?
GFCI-Protected Small Appliance Circuits Requirement: Provide at least two 20-amp, 120-volt circuits to supply power to GFCI (Ground Fault Circuit Interrupter) receptacles for countertop and eating areas. … 15 amp) for the higher power requirements found in kitchens. Think toaster ovens, blenders, and mixers.
How many amps does a GFCI trip at?
It takes a mismatch of about 5 mA of current (5 milliamps or . 005 A) to trip a GFCI. GFCI receptacles can provide protection to standard receptacles connected to the load side of the GFCI.
What happens when you put a 20 amp receptacle on a 15 amp circuit?
If your question is “can I connect a receptacle rated for 20 amps to a circuit designed for 15 amps?”, the answer is yes, because the receptacle can handle more current than the circuit is rated for. If you exceed 15 amps, the breaker will blow, and protect the receptacle. The inverse is not true.
