If you only have a single red wire the jumper between Rh and Rc are required for some heating and cooling hybrid systems depending on your thermostat. Yellow/Y is the AC compressor. Green/G runs the fan. Blue or Black/C should be a ground and will be used by both Rh and Rc, and apparently your thermostat.
Thereof, How do you wire a thermostat?
Also to know is, How do you hook up a thermostat?

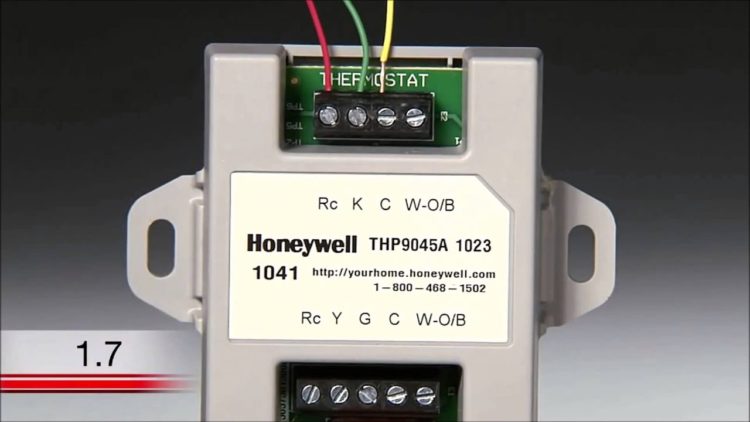

Subsequently, question is, Where do the wires go on a Honeywell thermostat? If you just have one wire, regardless if it’s labeled RC, it will go into the R terminal, and the jumper connecting terminals R and RC will be in place. Some thermostats have a jumper switch, some have a metal staple, others may have a plug, and the jumper may also just be a wire connecting the two terminals.
Also, Is RC the same as C wire?
Though it is a common notion, it may be incorrect to state that the C-wire powers the thermostat. Typically, the wires that give the power supply (usually termed as the ‘hot’ wires) are marked Rc (for cooling) and Rh (for heating). … ‘ If your system has a common wire, it will be marked ‘C’ at most times.
What color is C wire?
Blue
Where do thermostat wires go?
Here’s how to wire a thermostat using the color code and, FYI, each terminal’s purpose. Attach the red wire to the R terminal (Call for heating and/or cooling). Attach the green wire to the G terminal (Fan). Attach the white wire to the W terminal (Heat).
How do you identify C wire?
It is easy to see if you already have a c-wire connected to your system. Simply remove your current thermostat face from its baseplate and look for the terminal labeled with the letter “c.” If this terminal has a wire attached to it, you have an active “c-wire.”
What is RC wire on thermostat?
Red or “Rc” Wires Red wires, specifically Rc wires, are responsible for 24-hour volt AC power from your transformer. Rc wires are only for air conditioning systems or dual transformer systems. … These wires only connect to your cooling system. Rc wires connect to the RC terminals on your thermostat.
What are the wire colors for a thermostat?
– White. The white wire connects to your heat.
– Yellow. The yellow wire connects to your compressor.
– Green. The green wire connects to the fan.
– Orange. This wire connects to your heat pump (if applicable).
– Red (C). …
– Red (H). …
– Blue.
What happens if you wire a thermostat wrong?
Electric shock. Blowing a circuit breaker. Damaging the thermostat unit, the electrical system or even the AC/furnace unit itself. Dual-fuel systems, a poorly located thermostat, whole-home humidifiers, or incorrect wiring can make the installation of a thermostat a longer, more frustrating, and more complicated …
Is RC WIRE same as C wire?
Your Rh and W terminals control your heat. The C and Rc terminals are what powers the thermostat. … Rh stands for Red-Heat and Rc stands for Red-Cool. If you only have a single red wire the jumper between Rh and Rc are required for some heating and cooling hybrid systems depending on your thermostat.
What is a common C wire?
A common wire (C-Wire) provides Wi-Fi thermostats continuous power by connecting it to a heating and cooling system (e.g. furnace). C-Wires are required on most Honeywell Wi-Fi thermostats, with the exception of the Smart Round Thermostat (formerly known as the Lyric Round).
Can Nest thermostat work without C wire?
In most cases, a Nest Thermostat can work without a common wire. Without a common wire it charges its internal battery using power from the heating and cooling wires. With some HVAC systems, such as micro-controller-based systems and certain gas valves, will require a C-wire to work with Nest Learning Thermostat.
Do I need an electrician to change a thermostat?
Your best option is to have a C-wire properly installed and run to your new thermostat, which means it will require an electrician’s expertise. Even if you find a DIY article or video online, the risk to your health or home isn’t worth it when dealing electrical wiring.
Can I use G wire for C wire?
Option #3: Use a G-Wire as a C-Wire If there is no hidden C-wire, you can use a G-wire instead. However, you will not be able to use your fan independently when the heating or cooling isn’t running. Also, many HVAC systems are incompatible with this solution, including: … Two-wire heat-only HVAC systems.
Does R wire go to RH or RC?
Here are some general guidelines: An R wire can go into a Nest Learning Thermostat’s Rc or Rh connector. The Nest Thermostat E only has an R connector, which is typically where an R wire would go.
