The base course material, according to ACI 302, “Concrete Floor and Slab Construction,” should be “compactible, easy to trim, granular fill that will remain stable and support construction traffic.” ACI 302 recommends material with 10 to 30% fines (passing the No. 100 sieve) with no clay, silt, or organic materials.

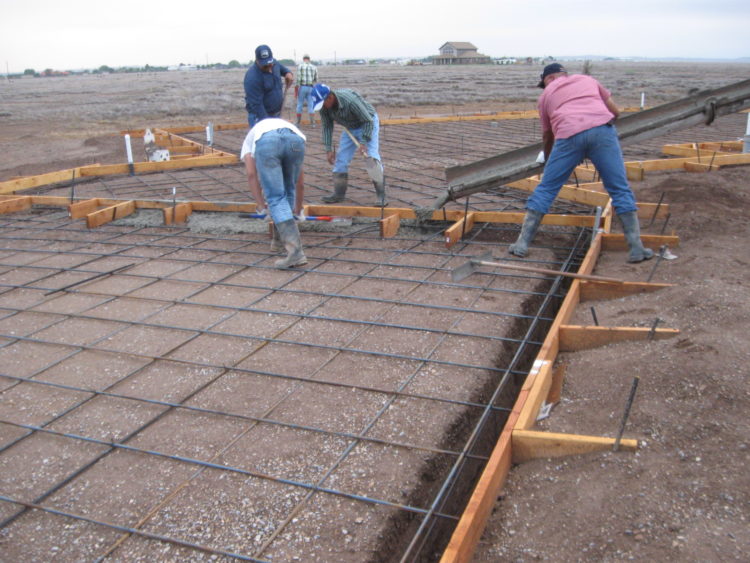

Pouring a slab foundation Inside the strings dig a trench 18” wide and at least 2′ deep (in colder climates you need to go down deeper to get below the frost line – usually 3 to 4 feet). This trench will form the footings for your foundation and provide the support for the walls of your building.
Thereof, Is sand a good base for concrete?
Pour concrete over a solid, well-drained base of sand or gravel over clay and other poorly draining soils to provide even support.
Also to know is, How do you prepare the ground for a concrete slab? – Dig the ground down to the proper depth. …
– Smooth out the ground with the flat side of a rake so that you have a level surface. …
– Tamp the ground with a hand tamper or mechanical tamper. …
– Pour 2 inches of small, rounded gravel for additional drainage needs.
Subsequently, question is, How much gravel do I need for concrete slab? Normally you want a base layer of gravel about 4-inches deep. Four inches is one-third of a foot, so multiply the square footage by one-third to find the cubic feet of gravel you need. For a 120-square foot patio that works out to 40-cubic feet of gravel.
Also, What Stone goes under concrete slab?
crushed stone
Can you put footings under concrete slab?
edit – To put footings under the slab, you can cut holes wherever needed, excavate for footings (Sonotubes or concrete piers or similar) and then patch the concrete slab.
How many inches of gravel do you need for a concrete slab?
Construct the form with 2×4 or 2×6 lumber and secure in place by wood stakes and deck screws. Excavate the slab area to a depth of about 7 inches, allowing 3 inches for a gravel base and 4 inches for concrete.
What kind of stone goes under concrete?
crushed stone
What size crushed stone for concrete slab?
Question: What size aggregate should be used to make the concrete for a 4 inch slab? Top Answer (37% of 40 votes): 3/4 inch crushed stone. Explanation: #57 rock (3/4) is best for strength. COMMON SENSE FLOORING, INC.
Does a concrete slab need footings?
All 3 types of slabs will need a footer and a slab of at least 4″ thick. The footers depth needs to be the depth of the frost line or as per local code, but no less than 12″ deep. … Slab Foundations Like all foundations, the slab starts with concrete footers poured 24 inches below projected finish grade.
What should you put under a concrete slab?
Whether you pour concrete for a walkway or patio, a strong gravel base is required to prevent the concrete from cracking and shifting. Gravel is especially important in clay soil because it doesn’t drain well, which results in water pooling under the concrete slab and slowly eroding the soil as it finally drains.
Does slab need footings?
While not a requirement, a concrete slab foundation provides a solid, clean surface for your steel building and can help it last longer. Since the building will require anchoring to minimize shifting, pouring a concrete slab gives you a chance to pour footings as well.
How much sand do I need for a concrete slab?
Because concrete slabs “float” on the soil, soft ground or voids underneath may cause unsupported areas to crack under heavy weight like vehicles. Pack about 4 in. of sand or gravel over clay and other poorly draining soils to provide even support.
Do you need gravel under a concrete slab?
Whether you pour concrete for a walkway or patio, a strong gravel base is required to prevent the concrete from cracking and shifting. Gravel is especially important in clay soil because it doesn’t drain well, which results in water pooling under the concrete slab and slowly eroding the soil as it finally drains.
Can you pour concrete directly on dirt?
Long story short, yes you can pour concrete over dirt.
Do I need footings?
Large decks that are attached to the house should always have footings because they act to spread the heavy load of the deck from the surface of a support post over a large surface of the soil so the ground can adequately support it. … The footings ensure that the deck will not fall, tip or rot away after a few years.
How much does a 50 lb bag of sand cover?
A 50 pound bag of sand is about 3 cubic feet…so it looks like 7-8 bags should work for 2 inch depth.
