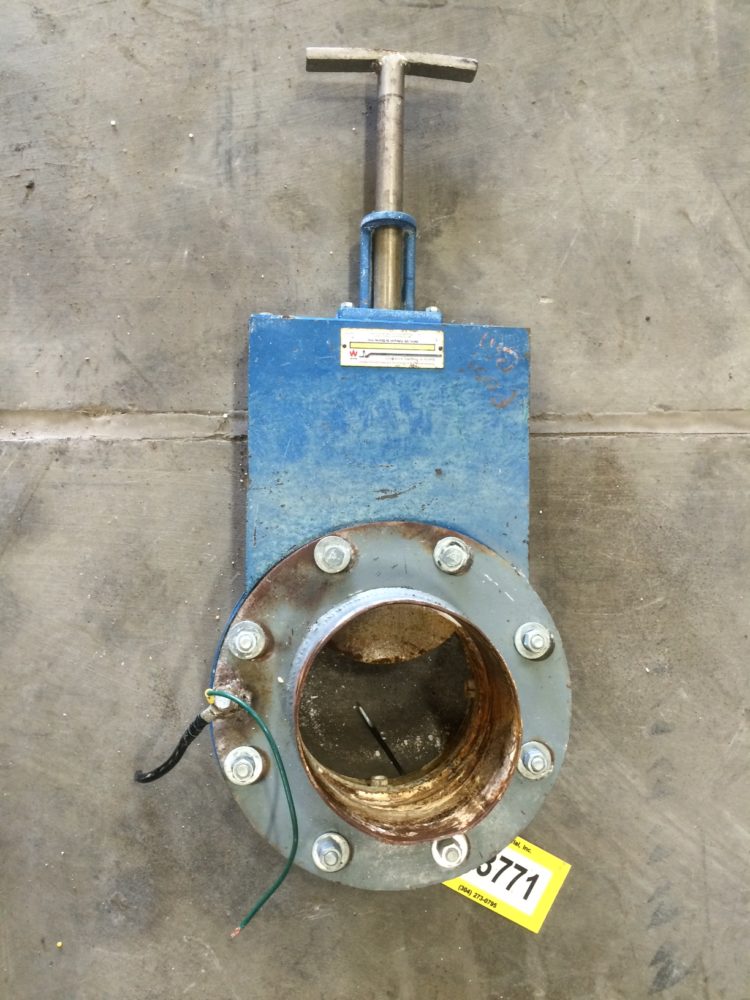

A gate valve functions by lifting a rectangular or circular gate out of the path of the fluid. When the valve is fully open, gate valves are full bore, meaning there is nothing to obstruct the flow because the gate and pipeline diameter have the same opening.
– Cycle the valve at least once a month if not used regularly.
– Relieve the system pressure before performing any maintenance.
– To remove from pipework reverse the installation sequence (above).
– Replace valve gate by removing the top body (bonnet) and stem.
Thereof, Can a gate valve be installed horizontally?
The most common and preferred installation for these valves is to have the stem in the vertical position. … American Petroleum Institute (API) Standard 600, Steel Gate Valves, Flanged & Butt-welding Ends, Bolted Bonnets states that valves built to this standard should be capable of operating in all orientations.
Also to know is, What is a gate valve made of? Gate valves are typically constructed from cast iron, cast carbon steel, ductile iron, gunmetal, stainless steel, alloy steels, and forged steels. All-metal gate valves are used in ultra-high vacuum chambers to isolate regions of the chamber.
Subsequently, question is, What is better a gate valve or ball valve? Therefore, ball valves are better suited for applications like natural gas where a proper seal long-term is important. Pressure: Both ball valves and gate valves are suitable for low pressure applications. However, for high pressure applications a gate valve is better suited.
Also, How do you identify a gate valve?
The gate can be shaped like a wedge, knife, or parallel. Physically, gate valves are higher than globe valves when fully opened, but have a smaller face to face length. The gate being moved up or down is easy to visually acknowledge as the valves operate with either a rising stem or a non-rising stem.
Can a gate valve be repaired?
A malfunctioning gate valve is not difficult to repair, but it is even easier to prevent. These problems are typically caused by mineral buildup, so you should fully close and open your gate valves every few months to clear potential problems.
Does a gate valve reduce pressure?
Gate valves require very little space along the pipe axis and hardly restrict the flow of fluid when the gate is fully opened enabling gate valves to offer straightway flow with very little pressure drop.
What is Valve and its types?
Valves are for starting or stopping flow, regulating or throttling flow, preventing back flow or relieving and regulating pressure in fluid or gaseous handling applications. Common valve types include: Ball,Butterfly,Check, Diaphragm, Gate, Globe, Knife Gate, Parallel Slide, Pinch, Piston, Plug, Sluice, etc.
Which direction should a ball valve be installed?
1) Ball valves are designed to be opened by rotating the lever handle in a counterclockwise direction, and closing in a clockwise direction. The handle indicates the ball port direction. 2) Under certain conditions, throttling flow in the near-closed position can destroy the valve seats.
What does a gate valve look like?
Gate Valve Basics Their name comes from how they operate, with a gate sliding in between the seats of the valve at a right angle to the fluid flow. The gate can be shaped like a wedge, knife, or parallel. Physically, gate valves are higher than globe valves when fully opened, but have a smaller face to face length.
How does a gate valve work?
Gate valves work by inserting a rectangular gate or wedge into the path of a flowing fluid. They are operated by a threaded stem which connects the actuator (generally a hand wheel or motor) to the stem of the gate. … When fully open, a gate valve has no obstruction in the flow path and so has a very low pressure drop.
Can a ball valve be installed upside down?
Can a ball valve be installed upside down? The valve may be installed in other orientations, but any deviation from vertical is a compromise. Installation upside down is not recommended because it can cause dirt to accumulate in the bonnet.
Is gate valve a control valve?
Gate valves are designed for fully open or fully closed service. They are installed in pipelines as isolating valves, and should not be used as control or regulating valves. … A gate valve is a multiturn valve meaning that the operation of the valve is done by means of a threaded stem.
Which is a type of gate valve?
Solid Wedge Gate Valve Solid wedge is the most common & widely used disk type because of its simplicity and strength. A valve with a solid wedge may be installed in any position, and it is suitable for almost all fluids. … Solid-wedge gate valves are generally used in moderate to lower pressure-temperature applications.
What is the symbol for a gate valve?
Gate Valves Its symbol looks like the outline of a bowtie with two straight lines crossing each other to form an “X”.
What is valve function?
Blood passes through a valve before leaving each chamber of the heart. The valves prevent the backward flow of blood. Valves are actually flaps (leaflets) that act as one-way inlets for blood coming into a ventricle and one-way outlets for blood leaving a ventricle.
How does the heart valves work?
The left atrium then moves the blood through the mitral valve into the left ventricle. When the left ventricle contracts, it moves blood through the aortic valve into the aorta. The aorta then provides blood to the rest of the body. The job of the valves is to move the blood through the heart.
