Thereof, How do you anchor a sill plate?
One method for fastening sill plates is the use of cast-in-place anchors, commonly referred to as “J” Bolts. “J” bolts are anchors in the shape of the letter J with threads on the end opposite of the bent end. These bolts are set in place before the concrete is poured.

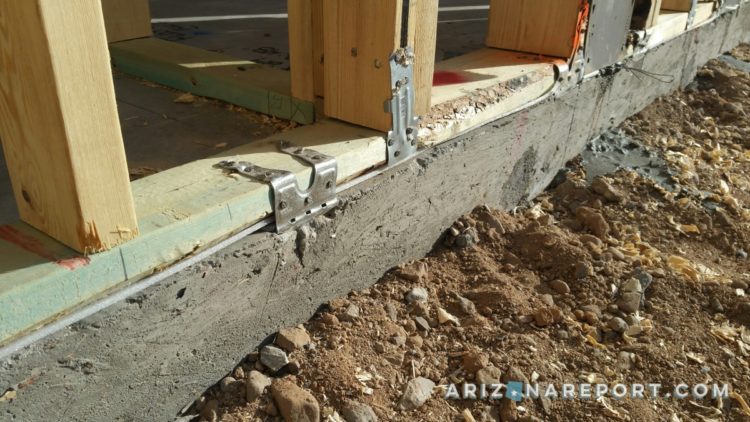

Also to know is, What is the proper spacing between foundation anchor bolts? Bolts shall be spaced not more than 6 feet (1829 mm) on center and there shall be not less than two bolts or anchor straps per piece with one bolt or anchor strap located not more than 12 inches (305 mm) or less than 4 inches (102 mm) from each end of each piece.
Subsequently, question is, What do you put under a sill plate?
Also, How do you anchor a foundation to a sill plate?
Here’s how to properly install a sill plate on top of a foundation wall. Sink anchor bolts into your foundation every four feet, laying a sill seal on top of the foundation to create a weather barrier. Pre-drill two-by-six sills to accommodate the bolts. Use pressure-treated lumber to resist water and insect damage.
What is the minimum number of anchor bolts required for anchoring a 12 foot section of wood sill plate to a foundation?
two bolts
How far above grade should a wood sill plate typically be?
8 inches
What is the purpose of anchor bolts in a sill plate?
Photo 1 shows a type of steel anchor bolt that is commonly used to connect wood sill plates to concrete or masonry foundations. These anchor bolts are set in place when the foundation wall is poured (or the concrete block foundation wall is grouted) with the threaded end up.
Where do anchor bolts go in concrete?
If you are using anchor bolts for concrete slabs or foundations it’s important to place the bolt in the concrete so it’s in the center of the wall. For 2 x 6 walls, the bolt would be 2 3/4 inches from the outer edge and for 2 x 4 walls the anchor bolt would be 1 3/4 inches from the edge.
How much of your foundation should be exposed?
4 to 6 inches
How long should concrete anchor bolts be?
As a rule of thumb, the space for the nut and washer is equal to the diameter of the wedge anchor being used. For example, if a 2×4 is being fastened to concrete with a 1/2” wedge anchor then the minimum length of wedge anchor would be 1-1/2”(2×4) + 2-1/4”(minimum embedment) + 1/2”(space for nut and washer) = 4-1/4”.
How high above finished grade does masonry foundation wall need to be if not using masonry veneer?
4 inches
How close can concrete anchors be?
A rule-of-thumb in the concrete-fastener industry is that the minimum spacing should be 10 diameters from each anchor, and measured center to center. The spacing from an unsupported edge should be at least five-anchor diameters.
Can pressure treated wood sit on concrete?
YES. Any exterior concrete that is in contact with earth may wick moisture. Thus, it is required to place pressure treated wood directly against the concrete if one wishes next to build off that concrete with untreated wood.
How much weight can a concrete anchor hold?
Masonry and concrete anchor types are considered light-duty, medium-duty or heavy-duty, based on how much weight they can support. Light-duty anchors are good for wall hangings that weigh up to 50 pounds. Medium-duty anchors are good for wall hangings that weigh up to 200 pounds.
How many pounds can wall anchors hold?
50 pounds
How much weight can a Tapcon hold?
1,360 lbs. *A safety factor of 4:1 or 25% of ultimate pullout/shear value is generally accepted as a safe working load.
