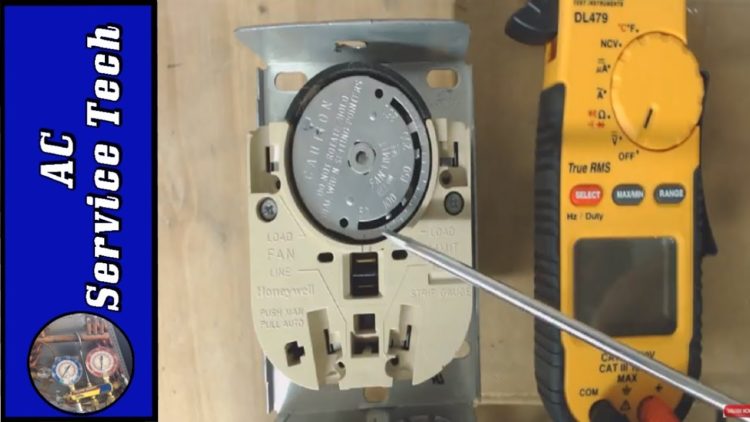

The fan limit switch senses the temperature increase in the furnace. The fan limit control includes a sensor (not visible in the photographs) that projects into the supply air plenum – on gas furnaces this is typically an area above the furnace heat exchanger.
Table of Contents
READ ALSO
The fan setting on your thermostat controls your HVAC’s system blower. … Once the thermostat reaches the desired temperature, the entire system shuts off until the next cycle. ON means that the fan is constantly on and blowing air when your HVAC system is not heating or cooling air.
Thereof, What controls the fan operation in heating?
The fan limit switch is a control which determines when the hot air furnace blower assembly turns on and off. … The thermostat, acting like a simple on-off switch, tells the furnace, through low-voltage electrical wires connected to a control on the furnace, to turn “on”.
Also to know is, How much does it cost to replace a limit switch on a furnace? Another safety control is a high limit switch, which measures the temperature of the furnace to ensure it is running within safe temperatures. Both of these are small but critical parts for safe furnace operation, and they will run from $150 to $400 to repair.
Subsequently, question is, How does a furnace fan limit switch work? The fan limit switch tells the blower assembly when it is OK to blow the heated air. Once the fan limit switch has sensed that the air in the plenum is a suitable temperature (usually around 20 degrees above the room temperature) it engages the blower fan to distribute air.
Also, Why does the fan on my furnace keep running?
When your thermostat is set to AUTO, your furnace fan should blow only when your furnace is in the middle of a heating cycle. But if your fan runs constantly, regardless of whether your furnace is heating, that’s not normal. … There’s a shorted thermostat wire. There’s a shorted wire at the fan limit switch.
How does a fan limit control work?
The fan limit switch tells the blower assembly when it is OK to blow the heated air. Once the fan limit switch has sensed that the air in the plenum is a suitable temperature (usually around 20 degrees above the room temperature) it engages the blower fan to distribute air.
What causes a furnace fan to keep running?
Two problems that could cause your fan to run without stopping include: A bad fan limit switch that needs to be replaced. Bad thermostat wiring.
How do you check a furnace fan limit switch?
Watch the oil or gas burner: The furnace oil or gas burner should turn ON and subsequently the FAN LIMIT control should turn the burner back OFF when the temperature in the supply air plenum reaches the FAN LIMIT set point. Watch the dial on the fan limit switch moving to confirm its operation.
How much does it cost to have someone look at your furnace?
National Average $295
—————— ————
Typical Range $130 – $469
Low End – High End $60 – $1,010
How do I replace the limit switch on my furnace?
Why does the blower on my furnace keep running?
When your thermostat is set to AUTO, your furnace fan should blow only when your furnace is in the middle of a heating cycle. But if your fan runs constantly, regardless of whether your furnace is heating, that’s not normal. … There’s a shorted thermostat wire. There’s a shorted wire at the fan limit switch.
Why does the furnace keep running?
The Furnace Filter is Dirty If the filter is dirty, it restricts airflow across the heat exchanger, which causes it to overheat! The furnace goes into “cool down” mode and runs the fan constantly. Your furnace might even start blowing cold air if this is the problem. The solution is simple: replace the furnace filter.
How do you test a fan limit control switch?
What should a fan limit switch be set at?
Check with your owner’s manual for suggested temperatures. For a general guide, set the two lowest ones (from the furthest left) to 100 and 130 degrees to control when the fan comes on and goes off. The third marker should be set around 200 degrees as a safety shut-off for the burner.
Why is my furnace not turning off?
If your furnace fan won’t turn off, you most likely have one of these 3 problems: Your furnace fan limit switch is set to “manual override” The fan limit switch is faulty and needs to be replaced. There’s a problem in your thermostat wiring.
Is it OK to run furnace fan constantly?
Running the furnace fan all the time can help by constantly pulling the cold air from the lower level and warmer air from the upper level, blending the two, and then redistributing a more stable, even temperature throughout the home. … Even if you have a single story home, you should still run your furnace fan.
What causes an open limit switch on a furnace?
The limit switch shuts off the burner when the temperature exceeds a preset temperature. When the temperature reduces to normal, the burner will come back on. The most common reason for limits to open is a plugged filter or a dirty blower wheel. On the left are some high temperature limits used in furnaces.
