A Sump Pump check valve is a flapper style, one way valve that gets installed in the discharge pipe of the sump pump.

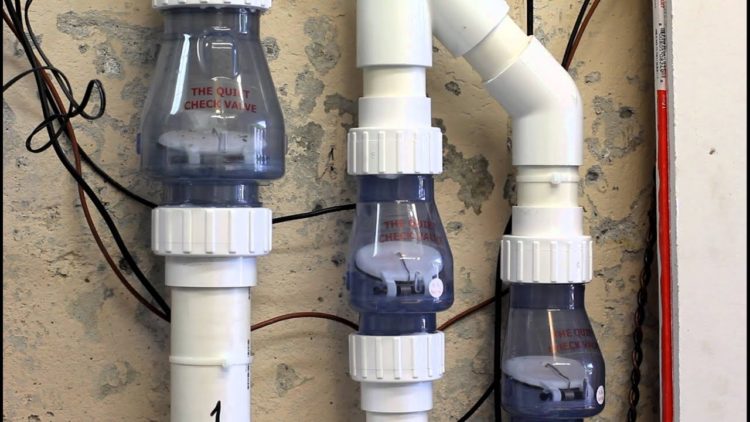

Sump pump check valves should be installed close to the floor after the pump, as shown by arrow #1. This will reduce the amount of water that drains back to the pump after each cycle.
Thereof, What happens when sump pump check valve fails?
When a check valve is not installed on your sump pump’s discharge line, a back flow of water can cause the pump impeller to rotate backwards and unscrew off the motor shaft. If this occurs, the motor in your sump pump will sound like it is running but it will not be pumping any water out the discharge line.
Also to know is, What is a quiet check valve? Installed in the discharge pipe leaving your sump pump, the quiet check valve prevents your pump from having to re-pump water it has already discharged. … However, with the addition of a quiet check valve, water quietly collects in the valve and is unable to be fed back into the pump.
Subsequently, question is, How far should a check valve be from a sump pump? two to three feet
Also, What is a silent check valve?
Silent check valves, also known as non-slam check valves and spring-assisted check valves reduce or eliminate water hammer and its effects. Water hammer refers to the high-pressure shock waves that occur when the flow of fluid abruptly stops (due to pump shut down or a valve disc quickly closing) in a piping system.
Is a check valve required on a sump pump?
Sump pump check valves are an important part of any sump pump system. Installed in the discharge pipe leaving your sump pump, the sump check valve prevents your pump from having to re-pump water it has already discharged.
What is the purpose of a check valve on a sump pump?
A check valve on the discharge line keeps water in the pipe from flowing back into the sump pit when the pump switches off. A check valve is sometimes referred to as a “one-way” valve because it allows water (or any liquid) to move in one direction only.
Can a sump pump check valve go bad?
The #1 reason for sump pump check valve failure is that it’s simply clogged! Yes, tiny stones and debris will accumulate around your check valve over time.
What is the difference between a check valve and a non return valve?
A check valve is the simplest type of directional control valve used in hydraulic systems. Check valves stop the flow of fluid in one direction and allow free flow in the opposite direction. They are also known as non-return valves. … This is called a line rupture valve.
Can a check valve go bad?
Usually when a check valve fails the water will run backwards after the pump shuts off, and the pump will start again even when no one is using water. But if you have two or more check valves, the lower one can be masking the problem of a bad upper check.
How close should the check valve be to the sump pump?
Best height ( unless owner’s manual states otherwise) is two to three feet off of the top of the sump pit. This way your sump pump motor doesn’t have to work as hard as when your check valve is in lower position. It will open easier due to the reduced weight of water above it.
How do you install a Zoeller quiet check valve?
How do you install a check valve on a sump pump?
How do you install a check valve sump pump?
Where should a check valve be installed?
Install check valve on the end of the vertical suction pipe in front of the pump. Also called bottom valve, the use of the check valve is to fill the pump with water once for all, so that you don’t have to fill it every time when pumping water.
Why do you need a check valve on a sump pump?
When the pump shuts off, gravity wants the water that is in the discharge pipe to fall back into the pit. The check valve is there to prevent that from happening. The check valve prevents the pump from having to re-pump that water out which could result in short cycling.
What is a non return valve used for?
A non-return valve allows a medium to flow in only one direction and is fitted to ensure that the medium flows through a pipe in the right direction, where pressure conditions may otherwise cause reversed flow.
