Hi There, Code P0401 relates to the EGR valve flow. When this code is triggered, the computer has detected that the flow is insufficient. Driving the car until next week will not cause any harm, although the vehicle may not run well.
Table of Contents
READ ALSO
P0401 “insufficient EGR flow” means that when the computer opens the EGR valve, using EGR vacuum solenoid, the DPFE sensor is not reporting a large enough Pressure change between the TWO hoses so computer “sees” insufficient EGR flow via the DPFE sensor.
Thereof, Is a p0401 code bad?

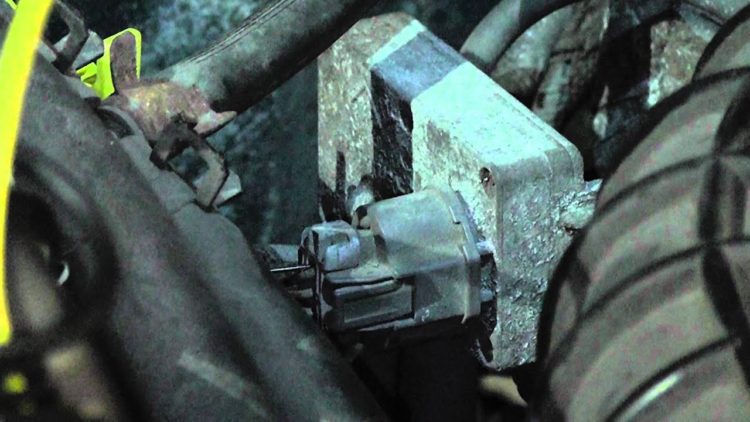

Ford: One of the common problems with many Ford vehicles that can cause the trouble code P0401 is a bad or damaged DPFE sensor (DPFE stands for Delta Pressure Feedback EGR). … The DPFE sensor and its hoses should hold the vacuum; the hoses should not be cracked or restricted.
Also to know is, Can u drive with a bad EGR valve? it shouldn’t cause any other problems UNLESS it is completely stuck open. (only seen this once in 5 years) a stuck open EGR valve can cause stalling at idle, no start, rough idle. for the most part, it is safe to drive without limitations.
Subsequently, question is, What does exhaust gas recirculation flow mean? The Exhaust Gas Recirculation (EGR) system is a part of the vehicle emission control. It directs a portion of exhaust gases back into the engine intake to lower the combustion temperature, read more how the EGR system work.
Also, What does exhaust gas recirculation do?
Abstract: Exhaust gas recirculation (EGR) is an effective strategy to control NOx emissions from diesel engines. The EGR reduces NOx through lowering the oxygen concentration in the combustion chamber, as well as through heat absorption.
How do I fix code p0401?
– Use vacuum pump to open the EGR valve while monitoring the DPFE voltage and RPM engine.
– Clean the EGR valve and tubing to remove the deposits.
What can cause a p0401 code?
– Clogged EGR passages.
– Faulty EGR valve.
– A failed sensor (e.g., differential pressure sensor, manifold absolute pressure sensor, etc.)
– Inadequate vacuum supply to the EGR valve.
– Circuit problems, such as damaged wiring and loose connections.
What is the code p0401?
The OBDII fault code P0401 means that the engine computer has detected that the Exhaust Gas Recirculation (EGR) system flow is insufficient. The EGR system redirects a small amount of exhaust gases back into the intake.
How much does it cost to fix p0401?
Despite the repair not needing any parts, the removal and cleaning of restricted tubes takes time, so expect a bill in the $300 to $400 dollar range. If you vehicle is currently throwing this code, schedule a diagnostic check with a mechanic immediately.
What happens if you don’t fix EGR valve?
A faulty EGR valve can cause problems with the flow and operation of the EGR system leading to performance issues including a reduction in power, reduced acceleration and decreased fuel efficiency. It can also cause vehicle emissions to increase.
How does an exhaust gas recirculation system work?
The EGR system reduces the combustion temperature by diverting a small portion of the exhaust gases back into the intake manifold. … The EGR valve connects the exhaust manifold to the intake manifold. The EGR valve is normally closed. There is no EGR flow when the engine is cold, at idle, or during hard acceleration.
How much does it cost to replace an EGR valve?
The average cost for EGR valve replacement is between $336 and $427. Labor costs are estimated between $86 and $108 while parts are priced between $250 and $319. This range does not include taxes and fees, and does not factor in your unique location. Related repairs may also be needed.
How do you clean exhaust gas recirculation?
– Spray carbon deposits with EGR-valve or carburetor cleaner. …
– Use a dull scraper and a pipe cleaning brush to scrub carbon buildup. …
– To deal with rock-hard buildup, leave the valve soaking in the cleaning solution for a few minutes. …
– Repeat step 3 to fight stubborn carbon deposits.
How much does an EGR valve cost?
Yes, your car can run without it, but it should not run without it. It will cost you between $150 and $700 to get your EGR valve replaced by a mechanic. If you’re interested in just getting the parts on your own, you can head to AutoZone and buy a new one at prices that range from as low as $40 to as high as $500.
How do you replace an exhaust gas recirculation valve?
When should you clean your EGR valve?
Experts agree that the valve must be cleaned every few years. You can use the 50,000-mile gauge as a point of reference for when you need to do the cleaning.
Is an EGR valve expensive to replace?
Having the EGR valve replaced on your car should cost between $147 to $548, which will cover the cost of parts an labor. You can pick up the valve itself for anywhere between $70 and $490, depending on the type of car you own and what part you buy.
